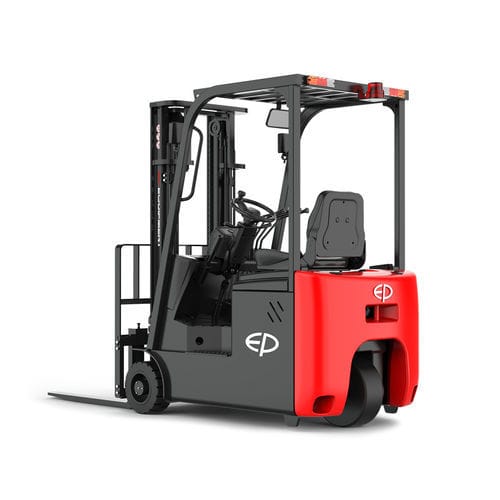

Electric forklift EFS151
ride-onhandlingfor warehouse

Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse - image - 2
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse - image - 3
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse - image - 4
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse - image - 5
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse - image - 6
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse - image - 7
Electric forklift - EFS151 - EP Equipment - ride-on / handling / for warehouse - image - 8
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for warehouse
Other characteristics
counterbalanced, compact, 3-wheel
Carrying capacity

1,500 kg
(3,306.9 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,060 mm
(41.7 in)

Overall length

2,717 mm
(107 in)

Load center distance

500 mm
(19.7 in)

Axle loading with maximum load front

3,290 kg
(7,253.2 lb)

Axle loading with maximum load rear

410 kg
(903.9 lb)

Axle loading without load front

890 kg
(1,962.1 lb)

Axle loading without load rear

1,310 kg
(2,888.1 lb)

Height of mast when lowered

Max.: 2,030 mm
(79.9 in)

Min.: 1,730 mm
(68.1 in)

Free lift

Max.: 1,514 mm
(59.6 in)

Min.: 100 mm
(3.9 in)

Overall height with mast raised

Max.: 5,554 mm
(218.7 in)

Min.: 3,046 mm
(119.9 in)

Height to top of overhead guard

1,995 mm
(78.5 in)

Seat height

985 mm
(38.8 in)

Tow couplig height

660 mm
(26 in)

Length to fork face

1,797 mm
(70.7 in)

Fork carriage width

1,040 mm
(40.9 in)

Ground clearance under mast with load

90 mm
(3.5 in)

Ground clearance at center of wheelbase with load

78 mm
(3.1 in)

Turning circle radius

1,535 mm
(60.4 in)

Travel speed

8 km/h, 9 km/h
(5 mph, 5.6 mph)

Lifting speed

0.25 m/s, 0.3 m/s
(0.82 ft/s, 0.984 ft/s)

Lowering speed

0.425 m/s, 0.44 m/s
(1.394 ft/s, 1.444 ft/s)

Gradeability

10 %, 12 %

Noise level

40 dB

Description

EP introduces a compact and agile 3-wheel Li-ion electric forklift truck, designed for quick goods turnover in areas with limited space and low ceiling heights. • Light to Medium Duty: With a light self-weight and a 1500KG capacity, EFS151 is perfect for light to medium duty applications. • Narrow Aisles & Low Ceilings: This compact forklift is ideal for confined space with low ceilings, such as malls, underground parking garages, cargo lifts and old factories. • Opportunity Charging: This lithium forklift truck is able to meet multi-shift working needs thanks to opportunity charging. • Compact Design: With a height of less than 2.0m and a small turning radius of 1535mm, it maneuvers effortlessly in tight spaces. • Renewable Energy Source: Equipped with a 48V/150Ah Li-ion battery and integrated charger for convenient charging and extended uptime. • EP’s Preventive Service App: In-house app provides Bluetooth access to parameter monitoring, changes, and real-time diagnostics, enhancing maintenance efficiency. EFS151 has a compact design, especially a small height (<2.0m), which makes it an ideal tool to perform in space with low ceilings, even with a 3F4350 mast. This 3-wheel truck also features a small turning radius 1535mm and light weight 2200kg, offering great maneuverability in narrow aisles and mezzanines. Lithium technology with integrated charger EFS151 adopts a maintenance-free 48V/150Ah Li-ion battery and 48V/30A internal charger, which delivers more charging convenience and increased uptime due to opportunity charging, better fitting in 24/7 operations. An AGM version with a 48V/30A external charger is also available.
