Electric forklift EFL252X
ride-onindooroutdoor

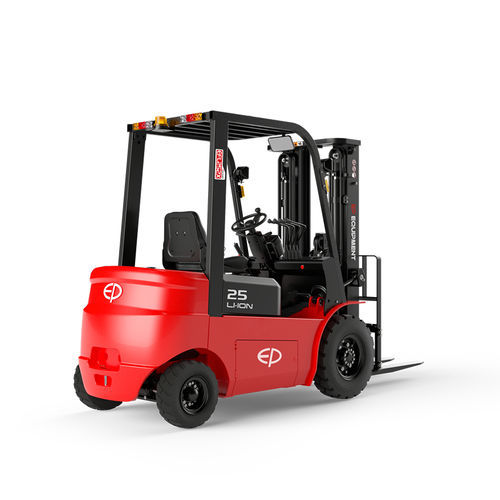

Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 2
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 3
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 4
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 5
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 6
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 7
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 8
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 9
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 10
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 11
Electric forklift - EFL252X - EP Equipment - ride-on / indoor / outdoor - image - 12
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
indoor, outdoor
Other characteristics
counterbalanced, compact, rugged, waterproof
Carrying capacity

2,500 kg
(5,511.6 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,154 mm
(45.4 in)

Overall length

3,620 mm
(142.5 in)

Load center distance

500 mm
(19.7 in)

Axle loading with maximum load front

5,815 kg
(12,819.9 lb)

Axle loading with maximum load rear

940 kg
(2,072.3 lb)

Axle loading without load front

1,805 kg
(3,979.3 lb)

Axle loading without load rear

2,450 kg
(5,401.3 lb)

Height of mast when lowered

Max.: 2,220 mm
(87.4 in)

Min.: 2,090 mm
(82.3 in)

Free lift

Max.: 1,655 mm
(65.2 in)

Min.: 120 mm
(4.7 in)

Overall height with mast raised

Max.: 5,825 mm
(229.3 in)

Min.: 3,565 mm
(140.4 in)

Height to top of overhead guard

2,170 mm
(85.4 in)

Seat height

1,110 mm
(43.7 in)

Tow couplig height

295 mm
(11.6 in)

Length to fork face

2,550 mm
(100.4 in)

Fork carriage width

1,040 mm
(40.9 in)

Ground clearance under mast with load

120 mm
(4.7 in)

Ground clearance at center of wheelbase with load

150 mm
(5.9 in)

Turning circle radius

2,250 mm
(88.6 in)

Travel speed

11 km/h, 12 km/h
(6.8 mph, 7.5 mph)

Lifting speed

0.29 m/s, 0.36 m/s
(0.951 ft/s, 1.181 ft/s)

Lowering speed

0.4 m/s, 0.43 m/s
(1.312 ft/s, 1.411 ft/s)

Gradeability

15 %

Noise level

74 dB

Description

The EFL252X, 2.5 ton electric forklift truck, is an economic alternative of diesel forklift trucks, for diverse transportation tasks indoors and outdoors. With a robust and waterproof design, this truck can be used in demanding environment like rainy days; in addition, with small turning radius of 2250mm, it offers great performance in tight spaces and narrow aisles, too • All-round Solution: Ideal for a range of applications, its compact and waterproof design ensures functionality both indoors and outdoors, even in confined spaces, narrow aisles and rainy days. • Replaceable Li-ion Battery: This Lithium-ion powered forklift truck is always ready for tight timelines and peak orders, even in rugged environments. • Economic Diesel Alternative: Designed as a cost-effective, entry-level alternative to IC trucks for indoor and outdoor operation. • Advanced Motor Technology: Features a Permanent Magnet Synchronous Motor (PMSM), optimizing battery efficiency by 10% compared to AC motors. • Flexible Power Supply: Powered by a removable 80V/150Ah Li-ion battery, it offers high flexibility in charging and uptime. • Ergonomic Design: Offers a comfortable workspace to reduce physical strain and improve productivity. The EFL252X adopts permanent magnet synchronous motor (PMSM) technology to deliver longer battery life. This efficiency optimization motor brings better energy savings and maximizes the battery uptime at optimal working scenarios by 10% comparing to regular motors. Removable Li-ion battery offering convenience for daily usage The EFL252X is designed around the advantages of lithium technology, equipped with removable 80V/150Ah Li-ion battery as standard.
