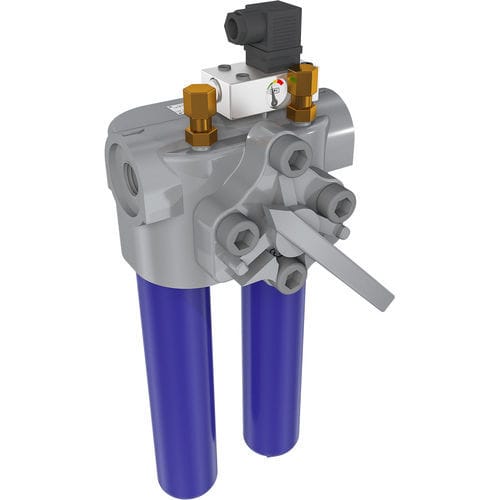

Hydraulic filter 40/160-LD/LDN

cartridgepressurelow-pressure

The 40/160-LD/LDN series Filters are used for direct installation in the pipeline and provide wear protection of downstream components & systems. Duplex in design for inline mounting the filter inlet & outlet are located the opposite sides. The flow path arrow (inlet to outlet) is marked on filter head. The Filter head is provided with two element locating spigots - one in each housing - and a change-over valve with metal to metal sealing and integral pressure equalization valve. The change-over handle points to the housing in operation. The integral pressure equalization is activated when the change-over handle is lifted to effect change over and deactivated once the change-over handle is released at the end position. The Filter bowls are mounted below the filter head and unscrewed for maintenance.
