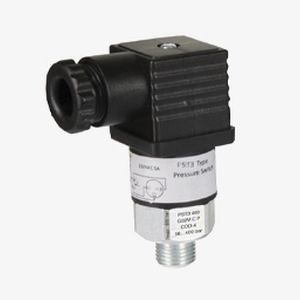

Electronic pressure switch PST3absoluteNONC
Add to favorites
Compare this product
Characteristics
- Technology
- electronic
- Pressure type
- absolute
- Contact type
- NC, NO
- Mounting
- threaded
- Process connection
- BSP 1/8
- Material
- stainless steel, brass
- Applications
- for hydraulic applications, for pneumatic applications
- Other characteristics
- adjustable, compact, stainless steel
- Pressure range
Min.: 0.2 bar
(2.9 psi)Max.: 400 bar
(5,801.51 psi)- Switching power: current
5 A
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
PST3 Series Pressure Switch opens and closes electrical circuit depending on pressure increase or decrease. Working pressure is adjustable between 0.2 bar and 400 bar [2.9 psi to 5802 psi]. System has adjustable feature while system is working. These switches can be used under all compressed air, liquids or gases.
Features
• Compact and economic design.
• NO/NC Socket and fast-on connection options.
• Reproducibility of pressure switch is ±3%.
• Body material is steel as Standard. Also available in stainless steel & brass.
• Standard switch is with NBR Seals with EPDM, HNBR & Viton as options.
