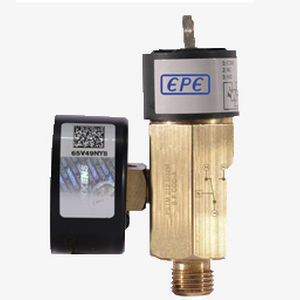

Diaphragm pressure switch PSTMabsoluteNONC
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- absolute
- Contact type
- NC, NO
- Mounting
- threaded
- Process connection
- BSP 1/4, BSP 1/8
- Material
- stainless steel, brass
- Applications
- for hydraulic applications, for pneumatic applications
- Other characteristics
- compact, stainless steel
- Pressure range
Max.: 12 bar
(174.05 psi)Min.: 0.5 bar
(7.25 psi)- Switching power: current
5 A
- Process temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)
Description
PSTM Series Pressure switch opens or closes electrical circuit depending on pressure is dropping or rising. Working pressure can be set from 0.2 bar to 12 bar [2.9 to 174 psi].User can follow system pressure instantly thanks to manometer on the switch. PSTM Series pressure switch is manufactured as only diaphragm type. It is classified depending on pressure ranges.
Features
• Compact Design with Manometer.
• Long service life due to high-quality micro-switch.
• NO/NC Socket and fast-on connection options.
• Reproducibility of pressure switch is 1%.±
• Body material is Brass standard. Also available in Stainless Steel.
• Standard switch is with NBR Seals with EPDM, HNBR & Viton as options.
