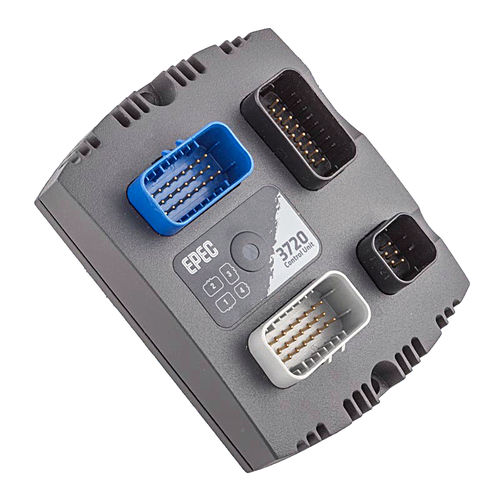

Embedded electronic control unit 3720

Need to connect 10 propo valve pairs? Epec 3720 control unit is specially optimized for hydraulic actuator control with a high amount of PWM outputs and feedback pins. Epec 3720 I/O interface is compatible with the previous Epec 2020 control unit and gives an easy upgrade possibility. Furthermore, Epec 3720 comes in the same rugged proven-in-use aluminum housing and reliable connectors. Processor: 16/32 bit CPU Flash memory: 1,6 MByte RAM: 1024 kByte (external), 138 kByte (internal) PLCopen application size: up to 768 kByte CAN: 1 or 2 I/O: 59 (35 inputs + 24 outputs) IP class: IP67 Temperature range: -40 … + 85 °C -40 … +185 °F Connectors: 3 x AMP23, 1 x AMP8 CODESYS version: 2.3 Supported CAN protocols: CANopen, SAEJ1939 Keywords: programmable automation controller, control module, ECU, I/O module
