Remote access gateway 6200

IoTWLANGSM

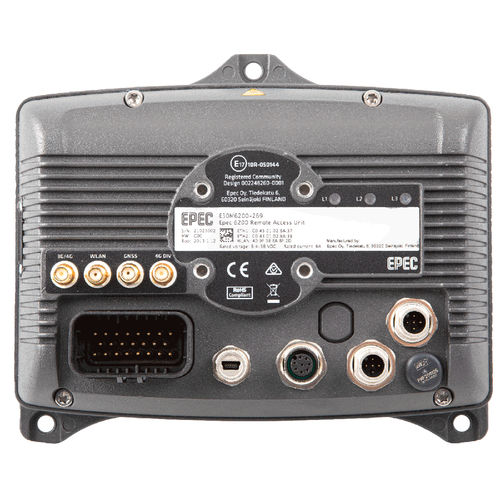

Epec 6200 Remote Access Unit offers versatile possibilities for remote access. Epec 6200 has a wide range of communication interfaces and it is wrapped in a slim and leak-proof rugged aluminum housing. Three diagnostic LEDs offer you quick status information. Together with Epec’s IoT Services you’ll get the fastest to configure and most reliable IoT system/remote management solution in the market. In case there is an occasional need for graphical interface in the machine, with Epec 6200 and WebVisu solution you can use for example a smart phone as temporary HMI when the machine is running. Processor: 32 bit CPU Flash memory: 4 or 32 GByte RAM: 1024 MByte CAN: 2-6 Ethernet: 2 USB: 1 RS-232: 1 GSM / UMTS / HSPA+/LTE WLAN GPS, GLONASS, BeiDou/Compass, Galileo, QZSS I/O: 5 (3 inputs and 2 outputs or 5 inputs and 0 outputs) IP class: IP67 Temperature range: -30 … + 60 °C -22 … +140 °F Connectors: 1 x AMP23, 2 x M12, 3 x SMA CODESYS version: 3.5 Supported communication protocols: CANopen, SAEJ1939, MODBUS, NMEA 2000 3 two-colored diagnostic LED for quick status check and fault detection Keywords: remote management, fleet management
