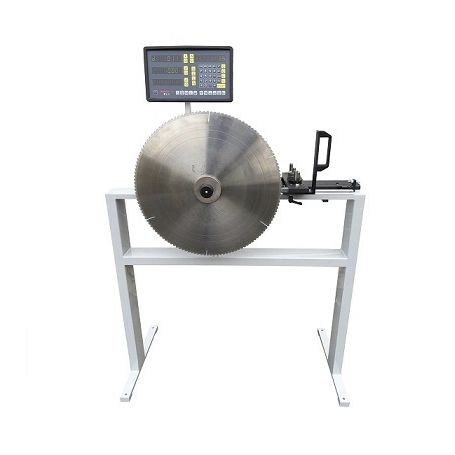

Diameter measuring machine MD 700for saw blades
Add to favorites
Compare this product
Characteristics
- Measured physical value
- diameter
- Measured material
- for saw blades
Description
Measuring unit type MD 700 with digital display for measuring the out side diameter of HM , MSS and CV saw blades of 150-700mm diameter
TECHNICAL DATA
Weight: - 44 kg
Maschine dimensions: - L 1000 mm, B 500 mm, H 1440 mm
Total power: - 25 VA
Electric connection: - 230 V, 50 Hz
Saw blades diameter.: - 150-700mm
Spindle: - 16 mm
Reducing ring: - 30×6.
Flange: - 50mm und 100mm.diameter
