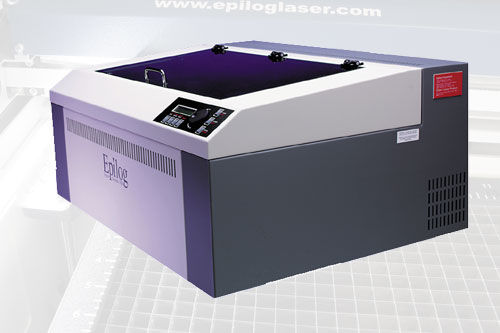

Technical specifications of our Profile Laser. The Profile is a legacy system of Epilog Laser. See specifications on this unit below.
Memory Buffer -
16 MB Rolling Buffer
Venting -
External ventilation to the outside is required.
Electrical -
Standard 110/220 volt AC 50/60 Hz, 15 amp.
Power Control -
Computer or machine controlled power in 1% increments from 1 to 100%. Color mapping allows up to 17 different power settings per job.
Speed Control -
Computer or machine controlled speed in 1% increments from 1 to 100%. Color mapping allows up to 17 different speed settings per job.
Cooling -
Air cooled - no external cooling is required.
Interface -
Windows 95 - parallel printer port.
