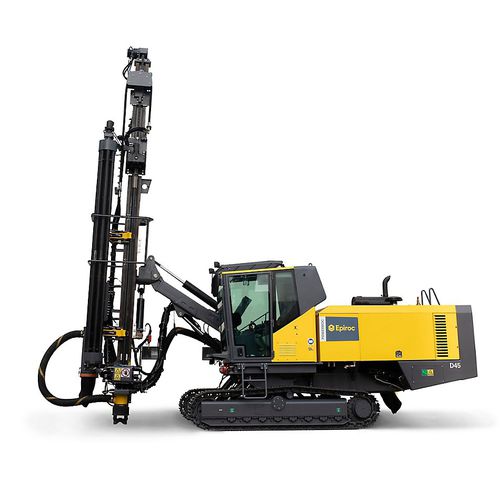

Multifunction drilling rig AirROC D45

crawlerrotarydown-the-hole

A reliable and robust rig, our PowerROC D45 is designed for limestone and cement quarries, open pit mines and aggregate quarries. It uses a straightforward mechanical and electrical system for easy operation and maintenance. By using direct control, our PowerROC D45 is easily operated and maintained, and less components eases troubleshooting and improves reliability and service. PowerROC D45 is an integrated hydraulic drill rig which includes the FOPS and ROPS certificated cabin, automatic rod handling system and dust collection system. Proven Epiroc technology, together with low initial investment, good fuel efficiency and high penetration rate, keep profitable output from your drilling operation. TECHNICAL DATA Main application area Mining ; Quarrying Drilling method Down-the-hole Hole diameter 90 mm - 130 mm Product family PowerROC Cabin Yes Rock drill/ DTH hammer size 4" Rotary head DRU 4 Maximum hole depth 29 m Engine 193 kW Air capacity (FAD) 230,8 l/s Power up By implementing the mechanizad drilling operation on PowerROC D45, risks associated with manual rod handling are avoided. A safe and ergonomical working platform is achieved with the help of components such as the FOPS and ROPS - approved cabin.
