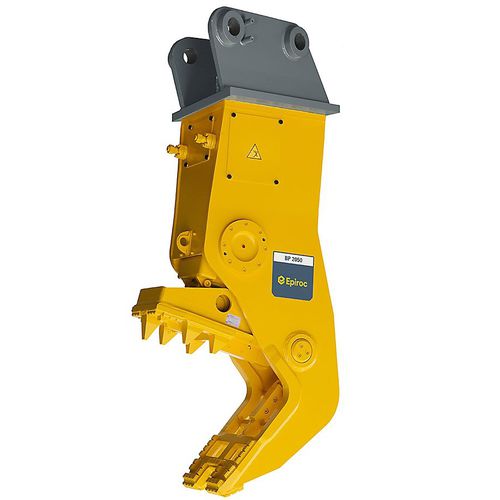

Hydraulic pulverizer BP 2050

for secondary demolition

Excavator pulverizer for carries of 18-27 tons Lower cost of ownership Excellent handling Save time on maintenance More speed, less consumption Power at the tips Design follows function Thanks to their angled shape and broad jaw, our bulk pulverizers are ideal for secondary demolition and reduction of reinforced concrete elements. Design follows function The angled shape and broad jaw help to speed up work. Bulk pulverizers enable clean separation of rebar and concrete and their subsequent reduction into grain sizes suitable for crushing or use as backfill. The optional hydraulic rotation drive also makes it possible to use our bulk pulverizers for a more efficient primary demolition of ceilings and walls. TECHNICAL SPECIFICATIONS Carrier weight class ¹ 18 t - 27 t Service weight ² 2 090 kg Jaw opening 875 mm Jaw depth 610 mm Blade length 190 mm Cutting force - upper blades 290 t Crushing force, jaw tip 90 t Operating pressure 350 bar Oil flow 150 l/min - 250 l/min Closing cycle 2,5 Seconds Opening cycle 2,9 Seconds Max operating pressure, rotation 170 bar Weights apply to standard carriers only. Any variances must be agreed with Epiroc and/or the carrer manufacturer prior to attachment. Attachment with average-sized adapter plate.
