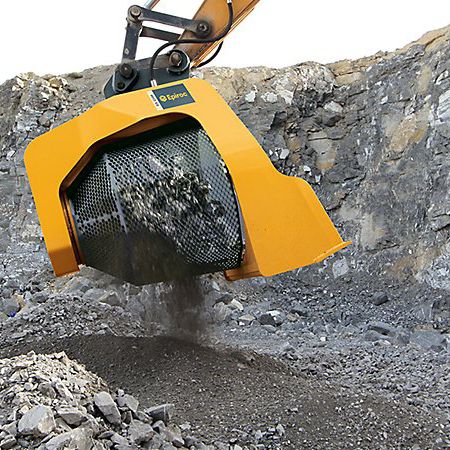

Screening bucket BS series

for excavators

Our Bucket Screener combines the best of modern design and sturdy construction to bring our customers in the recycling and rock excavation business an even more complete solution. Advantages of our rotary screening buckets Hydraulic power is transmitted to the basket via a timing belt that doesn’t require tensioning. This reliable transmission solution delivers optimum torque and reduces maintenance time. The large diameter of the main roller bearing enables us to fit a much longer basket, compared to other screening buckets on the market. The bigger screening area gives significant increase in performance and ensures high quality output. Furthermore, the basket features a polygonal design, with 12 sides rather than a smooth rounded surface. This shape enables the material to be shaken in a very effective way to speed up the screening process. The material then passes through hexagonal openings in the mesh and become high quality aggregates produced from rocks, crushed concrete and recycled material. Straight on the job site. Depending on needs and requirements customers can choose from baskets with six different mesh size openings: 20-30-40-50-60 and 80 mm. Two sizes of our front end loader screening buckets Our bucket screeners are available in two sizes, for carriers between 18 to 38 tons. High resistant steel construction ensures long lifetime in harsh working environment.
