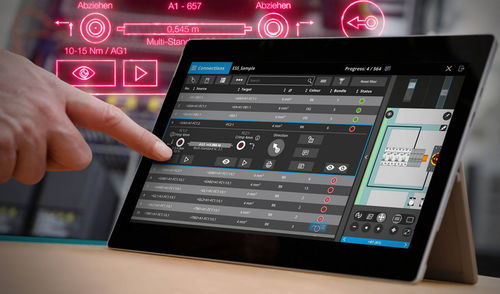

Clever Software for Wiring for Panel Building EPLAN Smart Wiring is your virtual assistant for manual wiring in panel building. From the connection point to the exact wire routing, the software provides the wiring technician all the necessary information in digital form – also in 3D when required. EPLAN Smart Wiring enables you to visualise every step in wiring a panel. By providing digital engineering data and always up-to-date project comparison, smart wiring becomes reality. As a wiring technician, you receive detailed, step-by-step instructions for easy implementation. You decide whether you want to wire the displayed routing connections individually or in a fixed sequence. The wiring status can be noted via a red/yellow/green traffic light principle. Wiring is possible even without the schematics, which are stored in the assistant. For checking and reference purposes, you can access the schematics – starting from each individual connection. Easy-to-read visualisation of mounting layout, devices, connections, connection types and wire routing. If there are last-minute changes, you can perform an automatic project comparison to avoid errors. You can forward any anomalies directly to the engineering department via e-mail. Project data are provided from a central server to enable identical control cabinets to be manufactured in parallel and for several wiring technicians to work simultaneously. Status information makes it easier to handover projects between different employees and to monitor a project’s progress.
