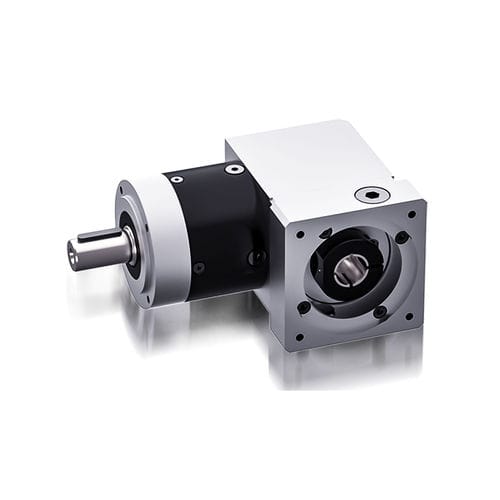

Planetary servo-gearbox PBE seriessolid-shaft200 - 500 Nm50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 50 - 100 Nm, 100 - 200 Nm, 20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm
- Configuration
- flange
- Number of stages
- two-stage
- Applications
- for servo motors
- Rotational speed
3,500 rpm, 4,000 rpm, 5,000 rpm, 6,500 rpm
(21,991.15 rad.min-1, 25,132.74 rad.min-1, 31,415.93 rad.min-1, 40,840.7 rad.min-1)- Backlash
Min.: 0.08 °
Max.: 0.22 °
- Gear ratio
Min.: 3 unit
Max.: 512 unit
Description
- Housing flange with threaded hole (B14)
- output shaft with feather key
- smooth output shaft
Input end:
- Servo motor adapter
