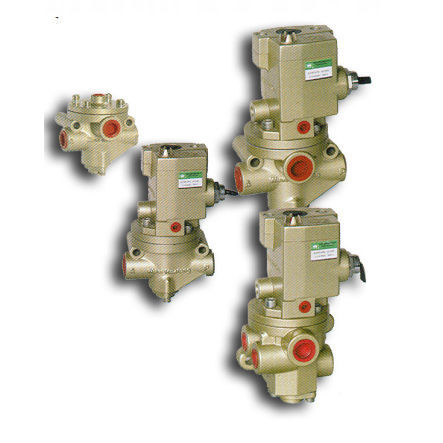

Direct-operated solenoid valve WH 27 series
2-waynormally closedair

Direct-operated solenoid valve - WH 27 series - E.P.R. S.R.L. - 2-way / normally closed / air

Direct-operated solenoid valve - WH 27 series - E.P.R. S.R.L. - 2-way / normally closed / air - image - 2

Direct-operated solenoid valve - WH 27 series - E.P.R. S.R.L. - 2-way / normally closed / air - image - 3

Add to favorites

Compare this product

Characteristics

Control

direct-operated

Ports/positions

2-way

Function

normally closed

Medium

air

Other characteristics

pneumatically-operated

DN

Min.: 8 mm
(0.315 in)

Max.: 40 mm
(1.575 in)

Voltage

24 V, 110 V, 220 V

Temperature

Min.: -5 °C
(23 °F)

Max.: 50 °C
(122 °F)

Pressure

Min.: 0.2 MPa

Max.: 0.8 MPa

Description

Model K22J-W of WH27 sériés is pipe fitting shut-off directional valves 2/2 way normally closed. Streamlined structure, reliable action easy of maintenance, and expeciallv suited to tough work conditions. Two types: electrically controlled and pneumatical controlled. Model K25J-W of WH27 sériés is pipe fitting shut-off directional valves 4/2 way. Streamlined structure, reliable action easy of maintenance, and expecially suited to tough work conditions. Two types: electrically controlled and pneumatical controlled.
