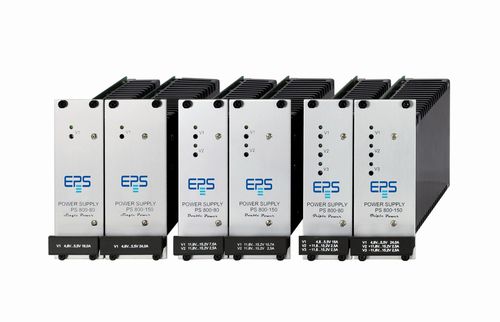

AC/DC power supply E/PS 800-19" series

stabilizedrack-mountplug-in

The compact design of the plug-in Power Supplies »E/PS 800-19"« (3U-Eurocard) according to DIN 41494 of EPS Electronic Power Supplies are available with single, double or triple output and at power levels of 80W, 150W as well as 240W at a choice of output voltages between 3.3V, 5V, 12-15V and 24V. All outputs, main and auxiliary, are provided with a static current limit and a power limit circuit and are stabilized independently, making them truly zero-load compatible, fully short-circuit- and overload-proof. By combining the synchronized rectifier and semi-resonant converter principle, an efficiency of up to 92% is achieved, making them highly efficient and extremely reliable. A wide input range of 90 up to 264VAC and 90 up to 360VDC with active PFC makes them suitable for a worldwide usage or as isolated DC/DC converters as well. Furthermore, an output inhibit feature allows to remotely enable or disable the output, in order to uses, for example, for automated systems and/or for safety purposes. Complete 19" rack systems with parallel redundant modules and custom specific output versions are available on request. As options the power sharing function ASF (only for single output modules), H15 Female connector and units "without front panel" are available, too.
