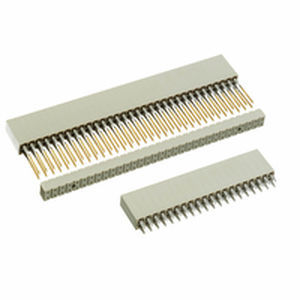

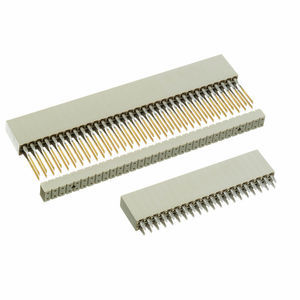

Data connector 962-40202-03board-to-boardparallelfemale
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- board-to-board
- Shape
- parallel
- Connection type
- female, through-hole
- Material
- PBT, copper
- Primary current
1.9 A
- Voltage
150 V
- Pitch
2.54 mm
(0.1 in)- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description
• termination length 3.4 mm
• 40 contacts
• performance level 3
Specification - PC/104
Performance Level - 3
No. of Contacts - 40
Termination Technology - solder
Termination Length - 3.4 mm
Board-to-Board Distance - 15.24 mm
Insulator Material - PBT glass filled, UL 94 V-0
Contact Material - Copper alloy
Mating Force per Pin - max. 0.9 N
Separating Force per Pin - min 0.6 N
Contact Resistance - 106 MΩ
UL file - E130314
Environment - RoHS compliant
