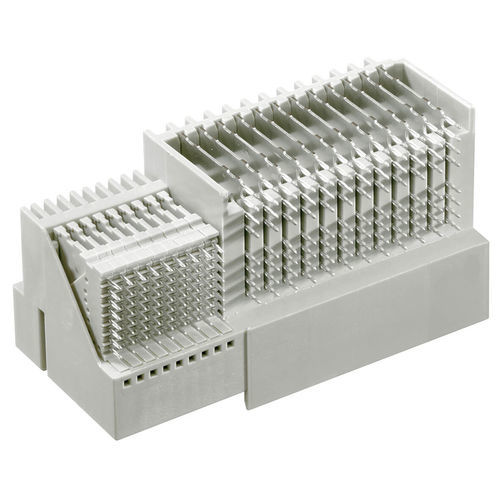

Power module 501-50096-183

• contacts: 72 signal, 24 power • Press-fit • according to PICMG specifications Specification - PICMG® MTCA.0 R1.0 No. of Contacts - 96 (24 Power, 72 Signal) Termination Technology - Press-fit Termination Length - 3.5 mm Operating Temperature Range - -55°C to +105°C Insulator Material - PBT glass filled, UL 94 V-0 Contact Material - Copper alloy Mating Force - max. 50 N Separating Force - max. 50 N Durability - 200 mating cycles Operational Current - Power contacts: max. 12 A, Signal contacts: max. 1 A Insulation Resistance - ≥ 108 Ω Test Voltage - 80 V r.m.s. UL file - E130314 Environment - RoHS compliant
