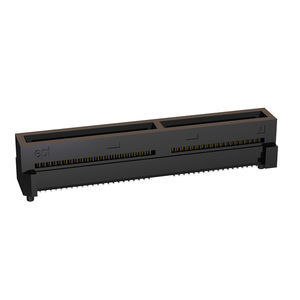

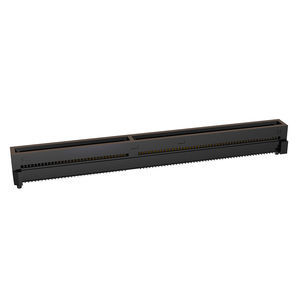

Data connector 408-52020-000-11

SMTcard-edgestraight

• 20 pins • without key • for 1.60 mm edge card thickness • Tape & Reel packaging Insulator Material - LCP, UL 94 V-0 CTI value IEC 60112 - 200 Contact Material - Copper alloy Plating - Au over PdNi over Ni Termination area - Sn over Ni Mating Force per Pin - ≤ 0.635 N Separating Force per Pin - ≥ 0.06 N Durability IEC 60512-9-1 - 500 mating cycles Coplanarity - ≤ 0.1 mm Vibration, sinusoidal IEC 60512-6-4 - 10 - 2000 Hz, 20g Contact mating problems if vibrations occur, sinusoidal IEC 60512-2-5 - ≤ 1 µs Shock, semi-sinusoidal IEC 60512-6-3 - 50g, 11 ms Contact mating problems if shock occur, semi-sinusoidal IEC 60512-2-5 - ≤ 1 µs Contact Resistance IEC 60512-2-1 - ≤ 15 mΩ Clearance and Creepage - 0.25 mm Insulation Resistance IEC 60512-3-1 - ≥ 1 GΩ Processing Soldering Temperature JEDEC J-STD-020E - 20 - 40 s at 260°C MSL JEDEC J-STD-020E - 1 Assembly - Pick and Place Approval / Compliance UL file - E130314 Environment - RoHS compliant
