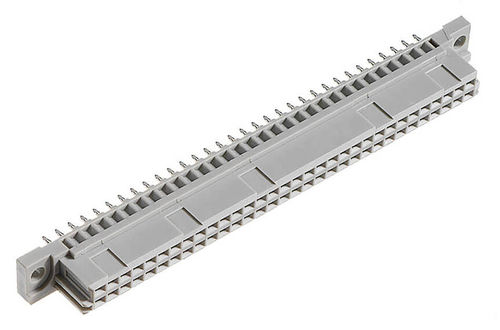

Data connector 102-40024DINparallelstraight
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN
- Shape
- parallel, straight
- Connection type
- female, through-hole
- Material
- PBT, copper, glass
- Other characteristics
- IEC, rugged
- Primary current
2.6 A
- Pitch
2.54 mm
(0.1 in)- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description
• Termination length 2.5 mm
• 32 contacts
• solder
• performance level 2
Specification - IEC 60603-2 (DIN 41612)
Performance Level - 2
No. of Contacts - 32
Termination Technology - solder
Termination Length - 2.5 mm
Board-to-Board Distance - 16.85 mm
Insulator Material - PBT glass filled UL 94 V-0
CTI value
IEC 60112 - 200
Contact Material - Copper alloy
Mating Force - 0.15 N
Durability - 400 mating cycles
Contact Resistance - 106 MΩ
Processing
Soldering Temperature - to 260°C
Approval / Compliance
UL file - E130314
Environment - RoHS compliant
