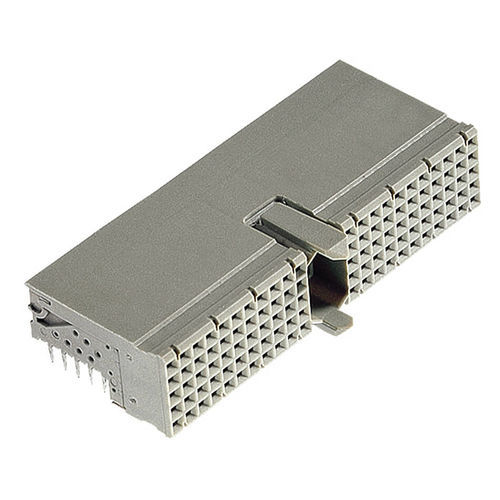

Data connector 244-11000-15femalepress-fitinsulation
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- female, press-fit
- Electrical characteristics
- insulation
- Material
- PBT, bronze, glass
- Other characteristics
- IEC
- Primary current
1 A, 1.5 A
- Pitch
2 mm
(0.079 in)- Data rate
3,125 b/s
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -55 °C
(-67 °F)
Description
• 110 contacts
• termination length 2.9 mm
• for PCB ≥ 1.44 mm
• without shielding
• tested according to IEC 61076-4-101
Specification - IEC 61076-4-101
Performance Level - 2
No. of Contacts - 110
Termination Technology - Press-fit
Termination Length - 2.9 mm
Material
Insulator Material - PBT glass filled, UL 94 V-0
CTI value
IEC 60112 - 200
Contact Material - Bronze
Insulator Material - PBT glass filled, UL 94 V-0
CTI value
IEC 60112 - 200
Mating Force per Pin - Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin - Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability - > 250 mating cycles
Contact Resistance - max. 20 mΩ
Clearance and Creepage - ≥ 0.6 mm
Insulation Resistance - min. 104 MΩ
Approval / Compliance
UL file - E130314
Environment - RoHS compliant
