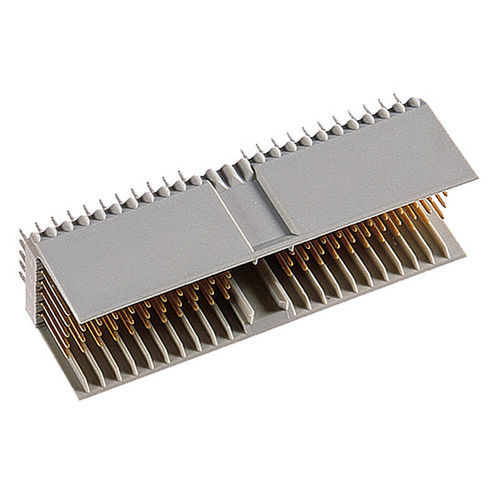

Data connector 243-11010-15PCBmalepress-fit
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- PCB
- Connection type
- male, press-fit
- Electrical characteristics
- insulation
- Material
- bronze
- Other characteristics
- IEC
- Primary current
1 A, 1.5 A
- Pitch
2 mm
(0.079 in)- Data rate
3,125 b/s
- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description
110 contacts
termination length 3.7 mm
for PCB > 2.2 mm
tested according to IEC 61076-4-101
Mating Force per Pin - Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin - Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability - > 250 mating cycles
Contact Resistance - max. 20 mΩ
Clearance and Creepage - ≥ 0.8 mm
Insulation Resistance - min. 104 MΩ
