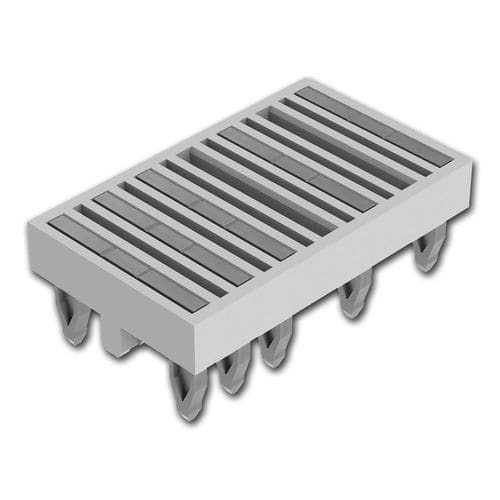

Electrical power supply connector 991-500300-11board-to-boardpress-fitinsulation
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- board-to-board
- Connection type
- press-fit
- Electrical characteristics
- insulation
- Material
- thermoplastic, PBT, copper
- Other characteristics
- small, horizontal
- Primary current
11 A
- Pitch
2 mm
(0.079 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
• 3 contacts
• small footprint design
• easy processing without soldering
No. of Contacts - 3
Termination Technology - Press-fit
Board-to-Board Distance - 1 mm
Material
Insulator Material - PBT glass filled
Contact Material - Copper alloy
Plating - Sn
Contact Resistance - ≤ 5mΩ
Clearance and Creepage - 1.4 mm
Insulation Resistance - ≥ 10 GΩ
Approval / Compliance
UL file - E130314
Environment - RoHS compliant
Catalogs
Connectors product catalog no. 27
377 Pages
