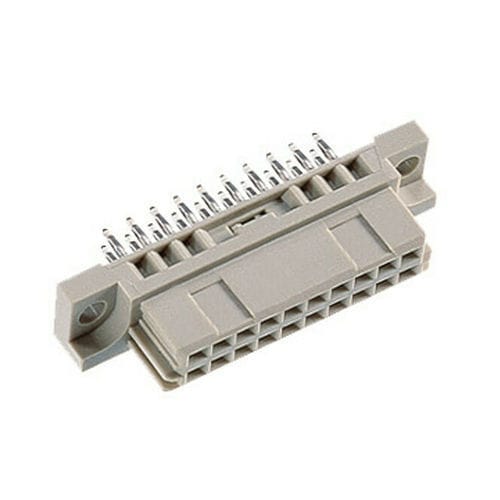

Female connector 102-68014-xxdataDINPCB
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN, PCB, board-to-board
- Shape
- straight
- Connection type
- female, press-fit
- Material
- PBT, copper, glass
- Other characteristics
- IEC, rugged
- Primary current
2.6 A
- Pitch
2.54 mm
(0.1 in)- Operating temperature
Max.: 125 °C
(257 °F)Min.: -55 °C
(-67 °F)
Description
• Termination length 3.2 mm / 4.6 mm
• 20 contacts
• PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB >2.8 mm: xx = 03 (termination length = 4.6 mm)
• Press-fit
• Performance level 2
Basics
Specification - IEC 60603-2 (DIN 41612)
Performance Level - 2
No. of Contacts - 20
Termination Technology - Press-fit
Termination Length - 3.2 mm / 4.6 mm
Board-to-Board Distance - 16.85 mm
Material
Insulator Material - PBT glass filled UL 94 V-0
CTI value
IEC 60112 - 200
Contact Material - Copper alloy
Mating Force - 0.15 N
Durability - 400 mating cycles
Contact Resistance - 106 MΩ
Approval / Compliance
UL file - E130314
Environment - RoHS compliant
