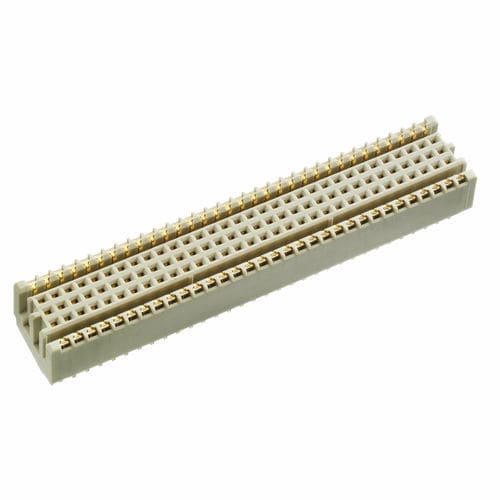

VME64x connector 306-60067-12dataDINfemale
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN, VME64x
- Connection type
- female, press-fit
- Electrical characteristics
- insulation
- Material
- PBT, copper, glass
- Other characteristics
- IEC, rugged
- Primary current
1.5 A
- Pitch
2.54 mm
(0.1 in)- Operating temperature
Max.: 125 °C
(257 °F)Min.: -55 °C
(-67 °F)
Description
• Termination length 4.6 mm
• 160 contacts
• Press-fit
• performance level 1
• DIN flange
Basics
Specification - IEC 61076-4-113
Performance Level - 1
No. of Contacts - 160
Termination Technology - Press-fit
Termination Length - 4.6 mm
Material
Insulator Material - PBT glass filled UL 94 V-0
CTI value
IEC 60112 - 200
Contact Material - Copper alloy
Mating Force - 160 N
Separating Force per Pin - > 0.15 N
Durability - 500 mating cycles
Contact Resistance - <20 mΩ
Clearance and Creepage - abc ≥ 1.2 mm, zd ≥ 1.0 mm
Insulation Resistance - 104 MΩ
Approval / Compliance
UL file - E130314
Environment - RoHS compliant
