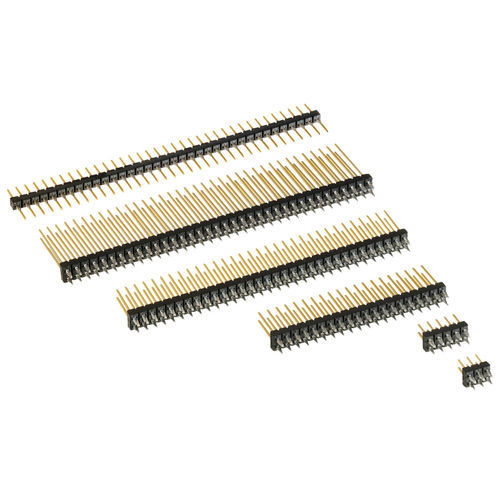

Single-row pin header 971-nn012-b1malestraightpress-fit
Add to favorites
Compare this product
Characteristics
- Type
- male
- Form
- single-row
- Other characteristics
- straight, press-fit
- Pitch
- 2.54 mm (0.100")
Description
• length mating face (Y) = 10.2 mm
• Press-fit
• termination length 3.4 mm
• 2 - 36 contacts (nn in part number = pins / row)
• 1-row
• b in part number defines Performance Level of mating side
No. of Contacts - 2 - 36
Termination Technology - Press-fit
Termination Length - 3.4 mm
Board-to-Board Distance - 16.65 mm - 20.65 mm
Material
Insulator Material - PBT glass filled, UL 94 V-0
Contact Material - Copper alloy
Mating Force per Pin - max. 0.9 N
Separating Force per Pin - min 0.6 N
Contact Resistance - 106 MΩ
Approval / Compliance
UL file - E130314
Environment - RoHS compliant
