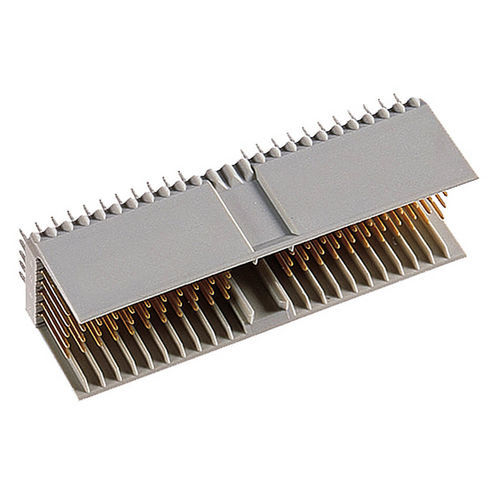

Data connector 243-11321-15PCBmalepress-fit
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- PCB
- Connection type
- male, press-fit
- Electrical characteristics
- insulation
- Material
- PBT, glass
- Other characteristics
- IEC
- Primary current
1 A, 1.5 A
- Pitch
2 mm
(0.079 in)- Data rate
3,125 b/s
- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description
• 154 contacts
• termination length 3.7 mm
• for PCB > 2.2 mm
• tested according to IEC 61076-4-101
Basics
Specification - IEC 61076-4-101
Performance Level - 2
No. of Contacts - 154
Termination Technology - Press-fit
Termination Length - 3.7 mm
Material
Insulator Material - PBT glass filled, UL 94 V-0
CTI value
IEC 60112 - 200
Contact Material - Bronze
Mating Force per Pin - Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin - Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability - > 250 mating cycles
Contact Resistance - max. 20 mΩ
Clearance and Creepage - ≥ 0.8 mm
Insulation Resistance - min. 104 MΩ
Approval / Compliance
UL file - E130314
Environment - RoHS compliant
