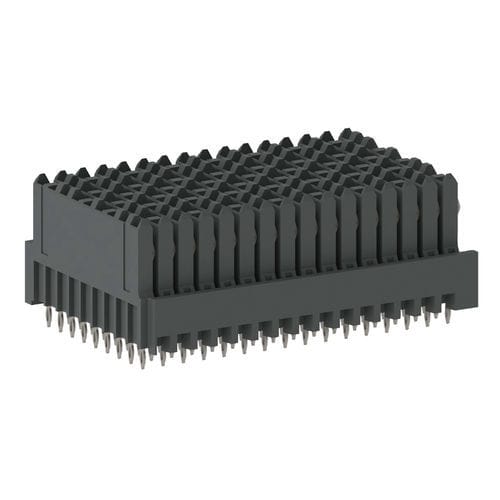

Data connector 308-50101-41press-fitinsulationhigh-speed
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- press-fit
- Electrical characteristics
- insulation, high-speed
- Other characteristics
- IEC, custom, rugged
- Primary current
1 A
- Voltage
50 V
- Pitch
1.8 mm
(0.071 in)- Data rate
10 Gb/s
- Operating temperature
Max.: 105 °C
(221 °F)Min.: -55 °C
(-67 °F)
Description
• plating Press-fit Zone: SPb
• custom loaded (135 contacts)
• termination technology: Press-fit
Specification - VITA 46
No. of Contacts - 135
Termination Technology - Press-fit
Termination Length - 1.62 mm
Material
Insulator Material - LCP, UL 94 V-0
CTI value
IEC 60112 - 175
Contact Material - Phosphor Bronze
Plating - 1.27 µm Au over Ni on contact area, SnPb on Press-fit zone
Mating Force per Pin - max. 0.75 N
Separating Force per Pin - min. 0.15 N
Durability - 200 mating cycles
Contact Resistance - max. 80 mΩ
Clearance and Creepage - ≥ 0.7 mm
Insulation Resistance - min. 1000 MΩ
Approval / Compliance
UL file - E130314
