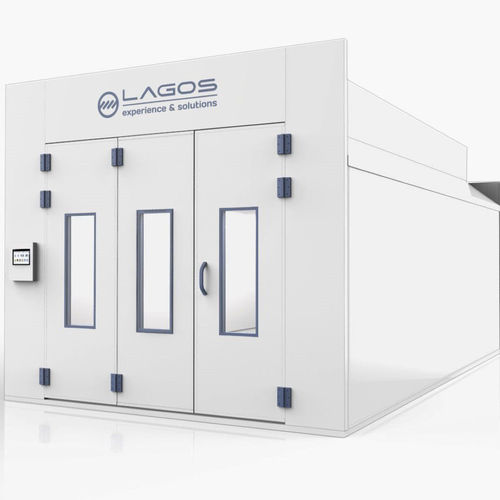

Enclosed spray booth Euro

for vehicles

The Euro 3.0 paint booth in Lagos is the answer to the needs of every modern paint shop concerned about the profitability of its operations. The flexible configuration allows it to adapt to any type of environment/space, drastically reducing the surface occupied by the equipment. The Euro 3.0 features optimized energy consumption thanks to direct burners and heat recovery systems (on demand). Optional mounting with or without civil work. All components are carefully chosen to obtain a higher return on your investment. Only first quality brands are being used on Lagos Paint Booths (Siemens, Schneider, Saint Gobain, Philips, etc.) Discover all the benefits that the Euro 3.0 booth can offer you: MATERIALS - Galvanized lacquered sheet with a treatment of five layers of polyester and plastified ISOLATION - Glassfiber FRONTAL - Two Doors for vehicles access: laminated and doubled glazed with air chamber and service door for workers with security system. 2nd Service Door mounted on the side of the booth (800 mm wide). LIGHTING - LED GENERATOR - Two turbines, stainless steel boiler and automatic gas burner (1 flame – Dt = 20ºC). Options available AIRFLOW - > 0,30 m/s (can be modified depending on the configuration) CONTROL PANEL - Separated case FLOOR - TOTAL GRID, composed by galvanized grids of reinforced rectangular mesh with interior ramps (no civil work option). (E.T.) PARTIAL GRID, composed by a central pit of 2.15 meters wide (E.P). The rest of the grid will be part of the civil work.
