Flocculator Dynamic Flocculator

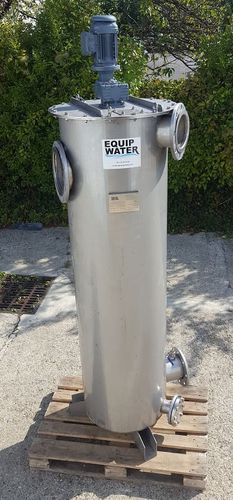

The dynamic EQUIP FLOCCU is a mixing cylindrical tank, that has the scope of mixing sludge at maximum concentration of 5% – 6% with diluted polyelectrolyte/polymer. The operating principle is very simple, the polyelectrolyte is determined with a “T” junction on the inlet sludge flange in order to take advantage of vertical mixer blades effect. The result of these mixing is a perfect flocculation of the sludge; in case of the following machinery can be feed with low pressure, the sludge can flow directly from the upper outlet flange. In other cases the sludge must need a relaunch or installing a mechanical seal to keep the liquid in pressure. The dimension of the tank will be defined accordingly with flow capacity and retention time of flocculation. 1 lower flange for the load with an inlet injection for polyelectrolyte 1 flange for maintenance drain with blind flange 1 shaft with blades for mixing sludge with polyelectrolyte 1 low speed electric agitator (40 RPM) – 230/400 V – 50Hz 1 cylindrical tank closed in the lower part in Stainless Steel 304 Screw/piston dosing pump for concentrate polymer Screw/piston dosing pump for diluted polymer 1 upper output flange of the mixed product 1 upper closure cover in Stainless Steel 304 bolted 1 regulation pressure valve + Y filter 1 inspection window on the top 1 Flow meter
