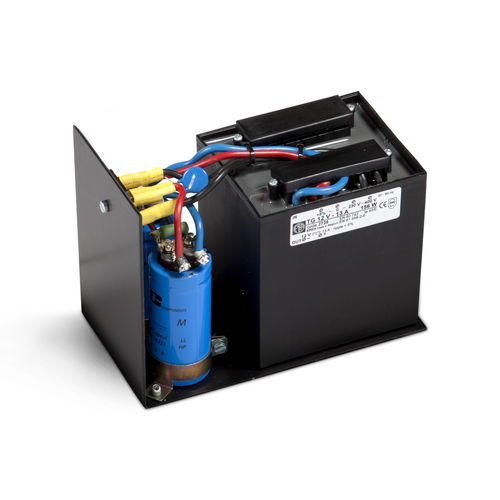

Electrical power supply transformer TG 12V-13Aindustrialsingle-phaselow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Applications
- industrial
- Electrical characteristics
- single-phase, low-voltage
- Electric power
156 W
- Primary voltage
230 V, 240 V, 400 V
- Secondary voltage
12 V
- Primary current
13 A
Description
Single-phase rectifier - Upri 0-230-400V AC // Usec 12V DC - In 13A
Electrical Characteristics
Primary Voltage (Vac): 0-230-240-400-410
Secondary Voltage DC (Vdc): 12Vdc
Secondary Current DC (Adc): 13Adc
Frequency (Hz): 48-65
Dielectric constant (Vac): 4500
DC power supply specifics
Instelbaarheid output: Fixed
Ripple (and noise): < 5%
General properties
Standards: EN 60742, EN 61558-2-6
Application: Voor alle toepassingen
IP degree: IP00
Max ambient temperature Ta (°C): 40
Temperature class of the transfomer: E
Mechanical Properties
Primary connection: Screw terminals
Secondary connection: Screw terminals
Mounting foot: 4 fixing lugs
Dimensions:
A (mm):180
B (mm):115
C (mm):146
D (mm):80
E (mm):100
M (kg)4,30
Casing: Vacuum-encapsulated with synthetic resin
