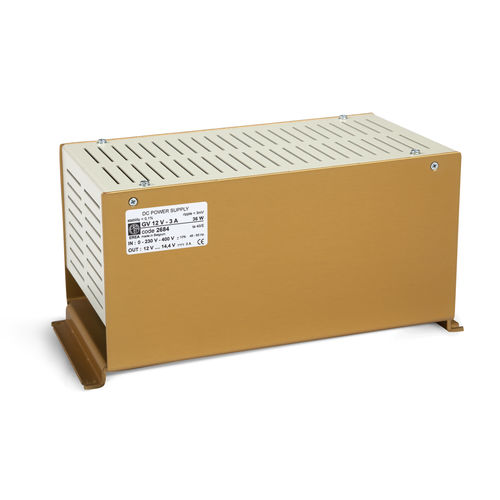

Electrical power supply transformer GV 12V-3A

industrialsingle-phaselow-voltage

Direct current stabilized power supply adjustable - also battery charging - Upri 0-230-400V AC // Usec 12V DC - In 3A Electrical Characteristics Primary Voltage (Vac): 230-400 Secondary Voltage DC (Vdc): 12Vdc Secondary Current DC (Adc): 3Adc Frequency (Hz): 47-63 Dielectric constant (Vac): 4500 DC power supply specifics Instelbaarheid output: Adjustable Output adjustment range (VDC): 12-14,4 Voltage stability: < 0,1% Ripple (and noise): < 3mV Beveiliging: Smeltzekering in de primaire en secundaire kring General properties Standards EN 60742 EN 61558-2-6 Application: Voor alle toepassingen en voor het laden van batterijen IP degree: IP00 Specific property: Output adjustable with 10-turn potentiometer (12-14,4V) Base and fast charging rates are separately adjustable Response time 15 µsec Max ambient temperature Ta (°C): 40 Temperature class of the transfomer: E Mechanical Properties Primary connection: Screw terminals Secondary connection: Screw terminals (2 x OUT) Mounting foot: 4 fixing holes Dimensions: A (mm):275 B (mm):135 C (mm):140 D (mm):260 E (mm):115 M (kg)3,00 Casing: Vacuum- and pressure- varnish impregnated
