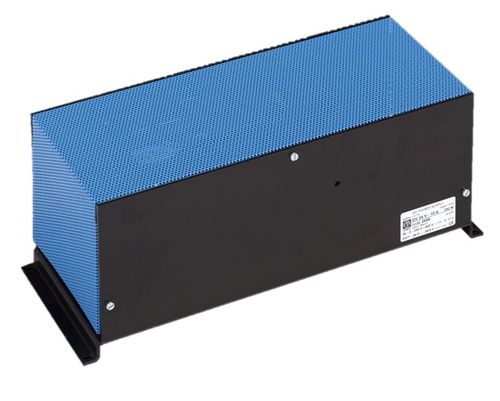

Electrical power supply transformer GV 24V-10Aindustrialsingle-phaselow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Applications
- industrial
- Electrical characteristics
- single-phase, low-voltage
- Electric power
240 W
- Primary voltage
230 V, 400 V
- Secondary voltage
24 V
- Primary current
10 A
Description
Direct current stabilized power supply adjustable - also battery charging - Upri 0-230-400V AC // Usec 24V DC - In 10A
Electrical Characteristics
Primary Voltage (Vac): 230-400
Secondary Voltage DC (Vdc): 24Vdc
Secondary Current DC (Adc): 10Adc
Frequency (Hz): 47-63
Dielectric constant (Vac): 4500
DC power supply specifics
Instelbaarheid output: Adjustable
Output adjustment range (VDC): 24...28,8
Voltage stability: < 0,1%
Ripple (and noise): < 3mV
Beveiliging: Smeltzekering in de primaire en secundaire kring
General properties
Standards:
EN 60742
EN 61558-2-6
Application: Voor alle toepassingen en voor het laden van batterijen
IP degree: IP00
Specific property:
Output adjustable with 10-turn potentiometer (24-28,8V)
Base and fast charging rates are separately adjustable
Response time 15 µsec
Max ambient temperature Ta (°C): 40
Temperature class of the transfomer: E
Mechanical Properties
Primary connection: Screw terminals
Secondary connection: Screw terminals (2 x OUT)
Mounting foot: 4 fixing holes
Dimensions:
A (mm):380
B (mm):150
C (mm):155
D (mm):365
E (mm):125
M (kg)9,70
Casing: Vacuum- and pressure- varnish impregnated
