Power auto-transformer TAB 1000
dryindustrialsingle-phase

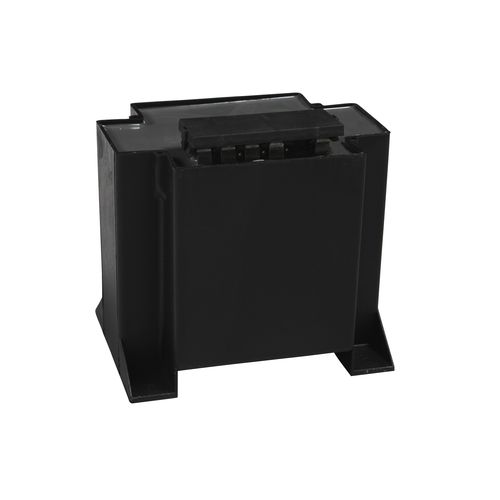

Power auto-transformer - TAB 1000 - EREA Transformers - dry / industrial / single-phase

Power auto-transformer - TAB 1000 - EREA Transformers - dry / industrial / single-phase

Add to favorites

Compare this product

Characteristics

Type: power
Configuration: dry
Applications: industrial
Electrical characteristics: single-phase
Other characteristics: vacuum impregnation
Electric power: 1,000 W
Primary voltage: 110 V, 130 V, 230 V, 240 V
Secondary voltage: 110 V, 130 V, 230 V, 240 V

Description

Single-phase autotransformer - IP00 - U 0-110-130-230-240V - Power 1000VA Electrical Characteristics Power (VA): 1000 Primary Voltage (Vac): 0-110-130-230-240 Secondary Voltage (Vac): 0-110-130-230-240 Frequency (Hz): 50-60 Efficiency (%): 96 Pcu (W): 20 Po (W): 19 General properties Standards: EN 61558-2-13 Application: Alle toepassingen Protection class: Prepared for class II IP degree: IP00 Specific property: Reversible Max ambient temperature Ta (°C): 40 Temperature class of the transfomer: E Mechanical Properties Primary connection: Screw terminals 6 mm² Secondary connection: Screw terminals 6 mm² Mounting foot: Fixing lugs (original supply) Dimensions: A (mm):160 B (mm):115 C (mm):150 D (mm):130 E (mm):95 M (kg)8,90 Casing: Vacuum-encapsulated with synthetic resin Options On request: Other voltage and power ratings Connections with insulated and mains cables FAST-ON connectors 4,8 x 0,5 mm With fuses
