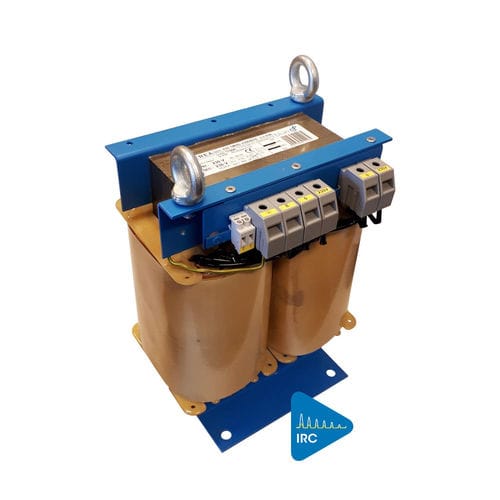

Isolation transformer 230TMHD3300/BTE

for medical applicationssingle-phaseprotection

Single-phase isolating transformer for application in medical purpose rooms Power (VA): 3300 VA Primary Voltage (Vac): 230Vac Secundary Voltage (Vac): 230Vac Dimensions A x B x C (mm): 240 x 200 x 310 Identification Article number 230TMHD3300/BTE Description Single-phase isolating transformer energy-efficient for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 3300VA Code 1844 EAN code 5414503103611 Brand EREA Type Electrical properties Power (VA) 3300 VA Primary Voltage (Vac) 230Vac Secundary Voltage (Vac) 230Vac Frequency (Hz) 50-60 Dielectric Strenght (Vac) 4500 Efficiency (%) 97,5 Pcu (W) 70 Po (W) 14 Voltage drop (dU%) 2,2 Dielectric strength referred to frame (Vac) 2500 Short-circuit voltage Ucc %) - General properties Degree of protection IP00 Standards EN 61558-2-15 EN 60748 Maximum ambient temperatur ta (°C) 50 Temperature class transfo B Applications For all applications in medical purpose rooms Protection class Prepared for class I Mechanical properties Dimensions A x B x C (mm) 240 x 200 x 310 Dimension D (mm) 150 Dimension E (mm) 158 M (kg) 45 Primary connection Screw terminals Secondary connection Screw terminals Finishing Vacuum- and pressure- varnish impregnated Φ (mm) 11 Options On request Special executions Option Housing IP20 - Option Housing IP23 - Option Silent Block Silent block 50
