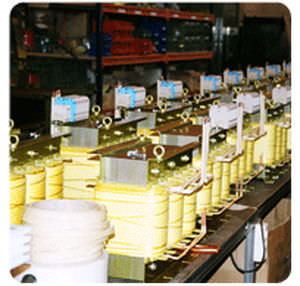

Power auto-transformer cast resinthree-phaselow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- cast resin
- Electrical characteristics
- three-phase, low-voltage
- Other characteristics
- three-winding
- Electric power
Max.: 5,000,000 W
Min.: 0 W
Description
Technical features
Power : Up to 5000 kVA
Frequency : 50-60 Hz
Isolators : Class F or H
Winding : Class HC-200ºC
Protection degree : IP-00 to IP-65
Nema 1 to Nema 4X
Environment Temperature : 40ºC
Standards : UNE-EN 61558-2-1
UNE 20178, IEC60726
Applications
- Voltage change
- Motor starting
- Net corrector (Compensating the overvolted or undervolted nets)
