Air cooling system

wateroiltransformer

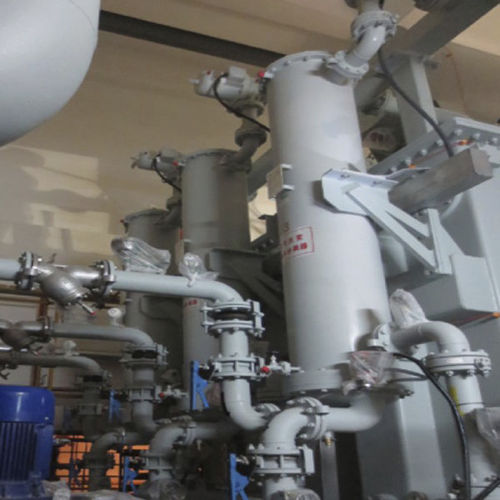

Cooling System for Underground Substation Transformer Product Overview The cooling system is mainly composed of transformer oil circulation pipe line, cooling media circulation pipe line, pumps, cooling fan, radiators, supplement tank of cooling media and etc. The transformer oil is driven oil-water exchanger by oil pump and cooled down by cooling media. The heated cooling media is driven into the copper tube radiator by the water pump. Then the cooling media exchanges heat with air under working of cooling fan. The cooled cooling media finally flows into the oil-water exchanger again. Advantage 1.Small size; 2.Compact; 3.High cooling efficiency; 4.High corrosion resistance; 5.Low noise; 6.Easy to installation and maintenance. Operation Condition Transmission media:transformer oil & water. Duty type: continuous duty.
