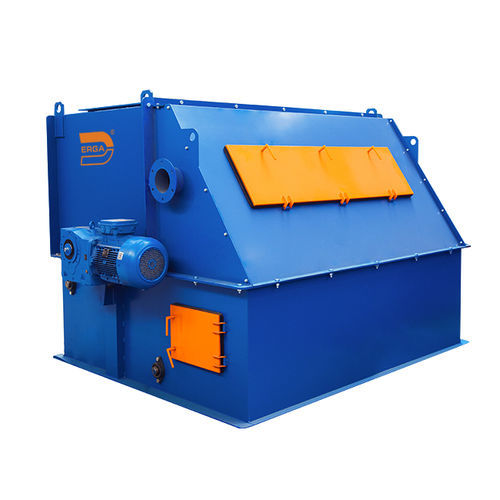

Magnetic drum separator DrumMag M

permanent magnetmetalfor bulk materials

Automatic magnetic separator for continuous recovery of tramp metal of various sizes from dry bulk material. - Efficient recovery of magnetic inclusions with size from 150 mm to 0.02 mm: The separator design increases uniform distribution of material along the drum operating surface thanks to the feed head with a gate or vibrating feeder. DrumMag M drum magnetic field intensity value determines its efficiency for removal of metal inclusions: - from 0.08 to 0.24 T (from 800 to 2 400 Gauss) for high-capacity (up to 350 t/ h) dry magnetic separation of crushed magnetite ores with resulting tailings with minimum content of magnetite iron provides a saleable product up to 150 mm from ferrous metal slag dumps. DrumMag M protects crusher and shredder from damage and premature wear; - from 0.24 to 0.6 T (from 240 to 6,000 Gauss) for upgrading quality of raw materials by removal of small magnetic inclusions (metal rubbings, scale, etc.) with grain size up to 0.02 mm in processing of ores and nonmetallic materials with medium magnetic susceptibility (ferrous slags, iron, manganese, chromium and other ores); - up to 1 T (up to 10 000 Gauss) for maximum cleaning of material from magnetic inclusions with size up to 0.02 mm, including weakly magnetic (manganese and stainless steels), thereby increasing the end product value. ERGA DrumMag M with this magnetic induction guarantees the production of high-quality material with minimum content of contaminants in processing of ores and nonmetallic materials with weak magnetic susceptibility (titanium-zirconium, columbite-tantalite, oxidized and carbonate iron ores, etc.); - Dust protection - Option of 2 separation stages in one housing
