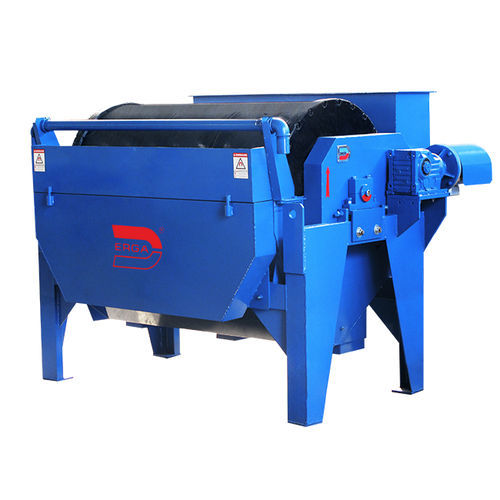

Wet separator WetMag HI

magnetic drumpermanent magnetsludge

WHIMS magnetic drum separator for continuous concentration of ores and nonmetallic materials. - Extremely powerful magnetic system: Magnetic field parameters are individually selected depending on magnetic susceptibility of the material for separation and vary from 0.3 to 0.6 T. The system based on NdFeB rare-earth magnets is unique and has no analogs in Russia. WetMag HI is used in concentration of oxidized iron, chromium, nonferrous, gold-bearing ores, tailings of concentration plants, etc. for recovery of minerals with medium and low magnetic susceptibility; - Individual selection of magnetic drum size: Flexibility of engineering and manufacturing process provides customized solutions for Customer’s required technological parameters (process performance, installation site features). The drum parameters can vary with diameter from 250 to 900 mm and length from 100 to 2000 mm; - Special magnetic system design is used for this type of equipment. The magnetic system features are deep magnetization of the operating zone for maximum recovery of magnetic particles and high-intensity magnetic stirring for breaking magnetic floccules and receiving magnetic concentrate; - Wet separation method: Application of WetMag HI drum separators is cost-effective and efficient with wet process of concentration. The wet separation process allows for processing of a wide range of particle sizes to produce high-quality saleable magnetic concentrate; - Protection of operating surfaces: Wear-prone separator parts (bath, rolls) are lined with special wear-resistant coatings. Separator covers are made of stainless steel, have increased reliability and wear resistance.
