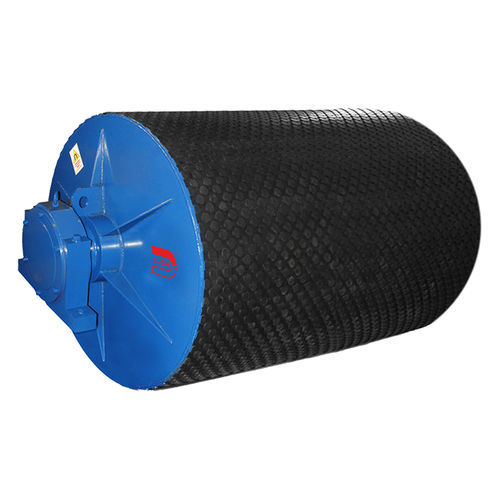

Iron separator pulley PullMag

magneticfor belt conveyors

ERGA PullMag magnetic pulley iron separator with automatic cleaning provides quality removal of strongly magnetic inclusions of various sizes from deep layers of bulk materials. - 2 in 1: magnetic iron separator + head pulley PullMag is integrated into conveyor as a head pulley at the place of material discharge from the belt, providing continuous cleaning of raw materials from impurities. IMPORTANT: additional lining of the pulley prevents the belt slippage and minimizes its wear. - Magnetic field operation range up to 350 mm: Robust design is represented by the permanent magnet system built-in the drum rotating on bearing supports. Powerful permanent magnetic system provides high operation range (up to 350 mm) with magnetization of the whole operating zone and guarantees metal recovery from deep layers of material. - No power consumption: The equipment does not consume any electric power for magnetic field generation and differs from electromagnetic analogs in significantly greater reliability. The guaranteed shelf life of the magnetic system properties, subject to operating rules, is 10 years. - Automatic cleaning - Conformity with industrial safety regulations: The equipment correspond to the requirements of industrial safety regulations and rules and can be applied at explosive and flammable (including vegetable stock storage, processing and application facilities, chemically hazardous enterprises and facilities, including mines with explosive proof, coal dust and methane access. All required certificates are included in the scope of supply.
