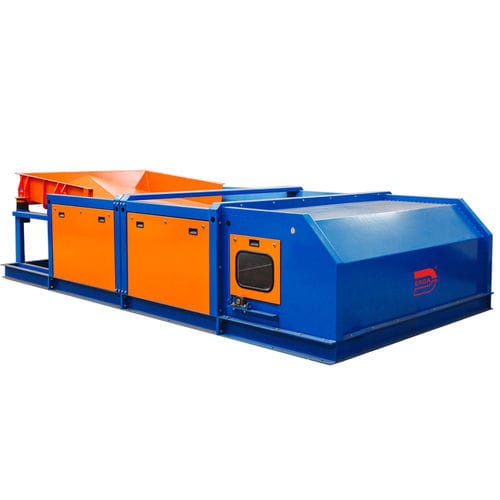

Eddy current separator EddyFlow VF

wastefor non-ferrous metalswaste recycling

Eddy current magnetic separator of special series ERGA EddyFlow VF allows you to increase income from profitable sale of recovered recyclables (nonferrous metals) and reduce costs when sorting municipal solid waste. - Highly efficient NdFeB magnetic system Eddy current separator ERGA EddyFlow VF is produced with concentric arrangement of the magnetic rotor relative to the drum axis. - Fine setting of separation mode Individual separation mode is selected and set according to the requirements for the end products. Precise adjustment of the splitter position, conveyor belt speed up to 3 m/s and magnetic rotor speed up to 3000 rpm allow to achieve efficient separation of the useful fraction of nonferrous metals of various shapes and weights (aluminum cans, Tetra Pak packaging, etc.) - Material feed via a vibrating feeder Vibrating feeder ensures even distribution of waste along the entire conveyor belt width (up to 2 000 mm). Material is fed as a monolayer for efficient recovery of the useful fraction containing nonferrous metals. Smooth adjustment of the feed rate of materials is possible with a frequency converter that regulates vibrators' revolutions. - Additional cleaning from ferrous metal tramp The design feature of EddyFlow VF special series eddy-current separator for MSW provides removal of ferrous metal tramp remaining in the flow after the preliminary stage of separation. - Advanced control system - Easy assembly and operation - Fast ROI Profit from the sale of recovered recyclables guarantees a quick return on investment in installation of the eddy current separator, which ensures continuous efficient operation in automatic mode.
