Automated separator WetMag HI

magnetic drumpermanent magnetsludge

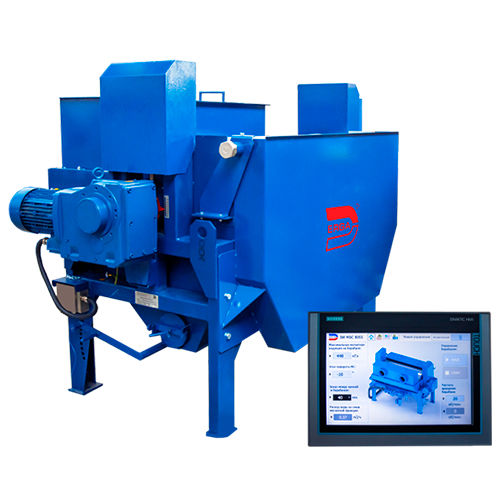

Self-discharging ERGA WetMag HI permanent magnetic drum separator is designed for automatic continuous recovery of medium and magnetic inclusions from slurries and process media. Automated adjustment of the permanent magnet system and operation modes Parameters of magnetic induction, degrees rotation of magnetic system and gap between the tank and the drum are set and adjusted on the control touch pad or from the operator's workstation. • Adjustment of magnetic intensity on the drum Option of adjustment of magnetic field intensity (induction) on the drum shell surface provides adaptation to changes in ore composition, while maintaining high concentration rates. • Adjustment of degrees rotation of magnetic system Option of adjusting the degrees rotation of magnetic system ensures setting optimum position of the magnetic poles for complete discharge of the magnetic fraction from the drum, which ensures efficient discharge of the magnetic fraction and reduces shell wear. • Adjustment of the gap between the tank and the drum Option of adjusting the gap between the magnetic drum and the bottom of the bath of the product allows you to stabilize the level of pulp flow in the bath when changing the productivity of the input material in order to maintain high enrichment rates.
