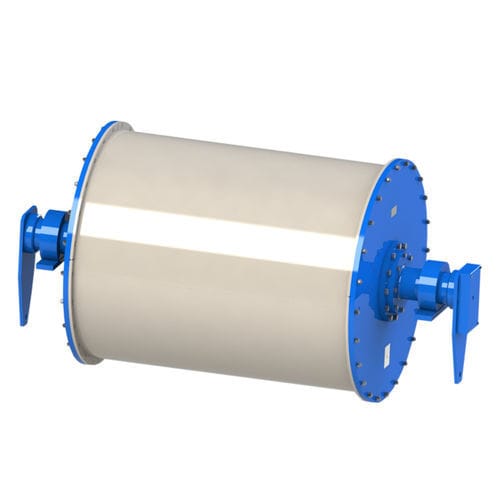

Magnetic drum separator DrumMag IC

permanent magnetpermanent magnetmetal

Self-discharging ERGA DrumMag IC iron separation pulley magnet is installed in belt conveyor as a drive pulley, providing continuous high quality removal of coarse and medium sized strongly magnetic impurities from the conveyed flow. 2 in 1: magnetic iron separator + drive pulley DrumMag IC is integrated in belt conveyor as a drive pulley, providing continuous high quality cleaning of raw material from strongly magnetic impurities. Major assemblies of DrumMag IC separator are heavy-duty designed to handle additional loads from the conveyor belt. Powerful permanent magnetic system Automatic iron separator with magnetic induction on the belt up to 0.3 T (up to 3 000 Gauss) ensures obtaining a saleable product in processing of slag dumps and ferrous scrap up to 300 mm; cleaning of raw materials from hardware, tramp metal or shredded tires from the cord. DrumMag IC protects crusher and shredder from damage and premature wear. Recovery of magnetic inclusions size up to 300 mm Special magnetic system provides necessary long-range magnetic field for guaranteed recovery of magnetic inclusions with size up to 300 mm. Sectoral magnetic system Special multi-pole sectoral magnetic system provides “stirring” of magnetic inclusions in raw materials, which significantly improves quality of the products and separation efficiency.. Automatic cleaning Cleaning of raw materials from magnetic impurities is automatic without personnel involvement.
