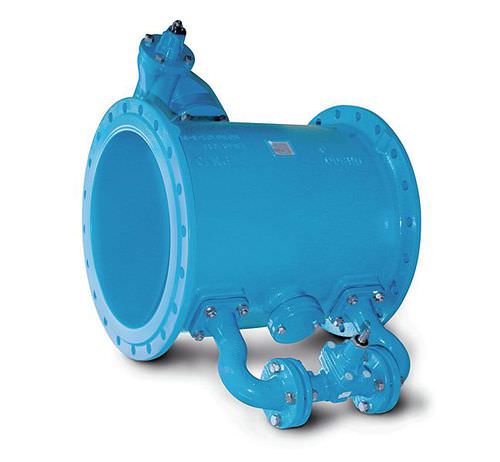

Butterfly valve purgefor waterdouble-offset
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Function
- purge
- Media
- for water
- Body
- double-offset
- Other characteristics
- high-performance
- DN
Min.: 400 mm
(15.748 in)Max.: 1,200 mm
(47.244 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 16 bar
(232.1 psi)
Description
DN 400 - 1200
PN 10 - 16
Body: EN-JS1030
Coating: Epoxy, Enamel
Special elongated design DIN EN 558 basic series 15 with closeably by-pass for reliable filling and draining of the pipeline without water hammer effects. From the closed position, the by-pass equipped with a gate valve and dimensioned to 1/10 of the nominal width is opened first and only then the main valve.
