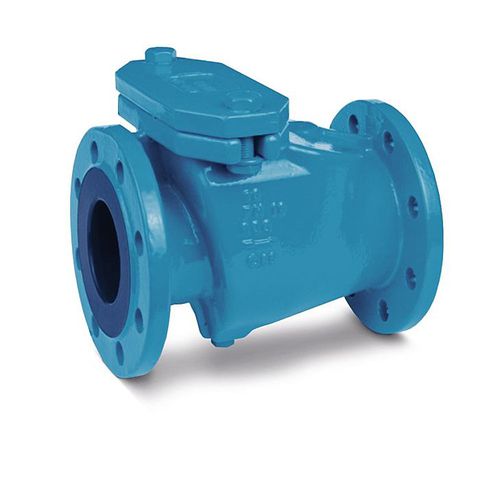

Disc check valve RFSEflangesilent
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Body
- flange
- Other characteristics
- silent
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 10 bar
(145 psi)
Description
DN 40 - 300
PN 10 - 16
Body: EN-JS 1050, EN-JS 1030
Coating: Epoxy, Enamel
Reflux Valve for potable and raw water as well as sewage plants, buildings and valve chambers
Rubberized tilting disc
Rapid and silent closing on flow reversal
Optionally enamelled
Materials in accordance with KTW recomendations
Can be used in horizontal and vertical pipelines
Catalogs
No catalogs are available for this product.
See all of ERHARD‘s catalogs
