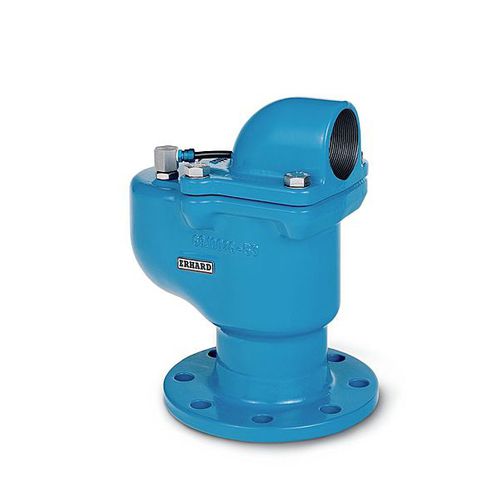

Pneumatically-operated valve TWIN-AIR®for potable waterswitchingautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatically-operated
- Media
- for potable water
- Associated function
- switching
- Other characteristics
- automatic
- DN
Max.: 200 mm
(7.874 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)
Description
DN 50 - 200
PN 10 - 40
Body: EN-JL1040
Coating: Epoxy, Enamel
Automatic air admission and air release of water pipelines in plants, buildings and valve chambers. For potable water.
Automatic air admission and release of the pipeline during filling, operational air release and during the emptying process.
Compact design with low weight
Large cross-section with maximum air admission and release rates
Automatic operational air release via lever with patented self-cleaning during each switching cycle
Internally enamelled, externally EKB coated
Also available for seawater application
