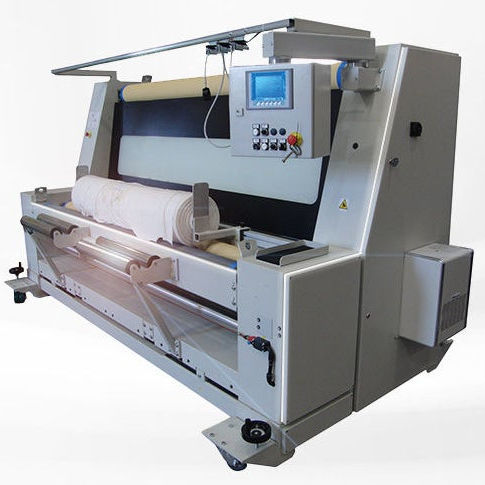

Stretch fabric inspection machine

•Goods inspection machine for the continuous production of woven and knitted fabrics •Infeed with J-box fabric store for flawless roll changing •Dancer position control to synchronize the downstream drives with the main machine •Infinitely adjustable spreading system for safe spreading of folded webs and curled edges •Speed-controlled drive for a machine speed between 5 and 60 m/min •Black inspection table for optimum contrast •Electronic meter counter for precise finishing •Integrated web tension control between the drive roller and ascending batch winder •Additional spreading roller directly in front of the rewinder •Ascending batch winder with advance for adjustable roll hardness •Ascending batch winder for maximum roll diameters of 600 mm •Winding station control for straight edged wind structures •Manual cross-cutting device for finishing •Forward and backward running for better visual inspection •Machine control integrated in the machine frame, with user-friendly touchscreen and control unit
