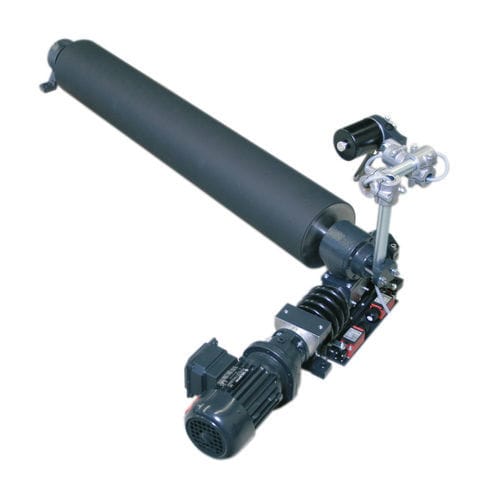

Roller guidance system VGA Series

Rollers at an angle to the direction of belt travel cause the belt to move laterally. This principle is used by the pivoting roller systems ELBANDER. The pivot point for the pivoting roller is one of the two bearings at the ends. The positioning roller is positioned at an angle around this point, depending on the correction required. Area of use Pivoting roller systems are used to guide conveyor belts. Application On conveyor belts, the pivoting roller is mounted on the bottom run just ahead of the lock roller. The actuator is to be arranged parallel to the direction of travel of the belt. The actuating movement must be at the bisector between the infeed and exit path. The infeed path should be the equivalent of at least one web width. The exit path is to be kept as short as possible. The wrapping around the positioning roller should be between 40° and 60°. For production speeds >1000 m/min the wrapping should be reduced to 10° to 20°. The position is acquired using an edge sensor immediately after the positioning roller. To prevent possible interference from the stretch roller on the control system, this roller is only allowed to be positioned with its axis parallel.
