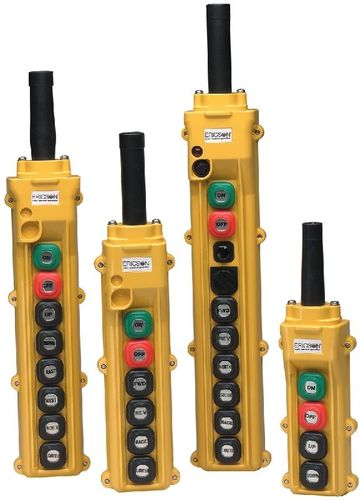

10-button pendant station 125 V, 1 - 5 A | 5500 - 5600 series IP67
Add to favorites
Compare this product
Characteristics
- Number of buttons
- 10-button
- Protection class
- IP67
Description
# Available in 2 to 12 button configurations
# Single- and two-speed models
# Neoprene boots surround buttons to seal out dirt and moisture
# Two-piece enclosure simplifies field wiring
# Soft pressure and positive indent switches provide optimum tactile feedback so you can feel when switch has been engaged
# Contacts rated at 5A/120VAC
# NEMA Types 1, 3, 4, 4X and 12 along with IP67 suitability enclosure ratings
# Double insulated 2500V withstand voltage
# 100 g shock resistance
# UL Listed and CSA Certified
