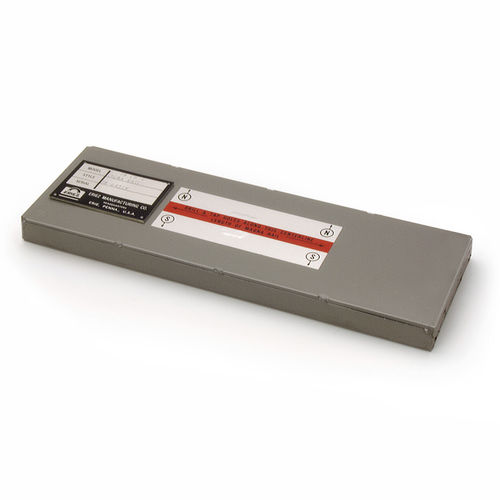

Positioning magnet Magna

These magnetic elements, positioned under conveyor belts and secured by mounting brackets, provide a safe, positive hold for ferrous parts—cans, sheets, nails, stampings, finished parts, even scrap—at high speeds in any direction, even up inclines as steep as 90°. Transition sections in various radii and matching holding strengths can be made to bolt to a straight section, providing a smooth carry–over from one direction to another. Electro Magna-Rails are available for special applications where on/off power is required. Electro rails are built with a 3-3/4" (95 mm) face width in standard 12" (304 mm) as well as special lengths. They use a Class B insulated coil and can be furnished for operation on either 110V, DC or 220V, DC.
